Server error in '/Reports' application when exporting to excel in SSRS

I was exporting the report data into excel and got an error "Server Error in '/Reports' Application" as below :

Server Error in '/Reports' Application.
--------------------------------------------------------------------------------

Runtime Error
Description: An application error occurred on the server. The current custom error settings for this application prevent the details of the application error from being viewed remotely (for security reasons). It could, however, be viewed by browsers running on the local server machine.

Details: To enable the details of this specific error message to be viewable on remote machines, please create a <customErrors> tag within a "web.config" configuration file located in the root directory of the current web application. This <customErrors> tag should then have its "mode" attribute set to "Off".


<!-- Web.Config Configuration File -->


<configuration>
<system.web>
<customErrors mode="Off"/>
</system.web>
</configuration>


Notes: The current error page you are seeing can be replaced by a custom error page by modifying the "defaultRedirect" attribute of the application's <customErrors> configuration tag to point to a custom error page URL.


<!-- Web.Config Configuration File -->

<configuration>
<system.web>
<customErrors mode="RemoteOnly" defaultRedirect="mycustompage.htm"/>
</system.web>
</configuration>

The reason was simple, as my report has large number of rows and SSRS 2008 R2 generates word/excel of 'office 97-2003' file format. And in 'office 97-2003' format, excel supports up to 256 columns and 65k odd rows. To fix it I did Paging in SSRS Reports for 50k rows per page. and it worked fine for me.




Reference: Govind Badkur(http://sqlserver20.blogspot.com)

Add Page footer in SSRS Report

In reporting we may require to add Page number, UserID or any other information at footer. So to get it, follow the below steps :

1) In the report Designer View click any where in the rectangular area.

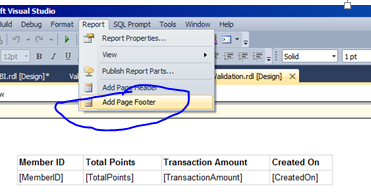

 2) Now from the menu select Report->Add Page Footer. a new area will appear under the Design rectangular area, this is the footer area.

a)



b)




3) Now, Drag and drop two text boxes in the footer area.

4) Right Click the Right TextBox and click on Expression.

5) Double click on the Built in Field "UserID" and press ok.

6) Repeat the same for Left TextBox, and put the  code ' =Globals!PageNumber & "/" & Globals!TotalPages '.

We are done here, and will get the page number following with UserID.



 Reference: Govind Badkur(http://sqlserver20.blogspot.com)

Repeat header rows on each page in SSRS Reports

I wanted to Repeat header rows on each page in SSRS Reports. Since I had a report containing large number of transactions, I required to split the output into multiple excel sheets and with that repeat the header row on each sheet and on every page on Preview. For achieving this, I followed the below steps.

1) At first, checked 'Repeat header rows on each page' and  'Repeat header columns on each page'




2) Select the table and in right to the grouping pane, click the down arrow and then click 'Advanced Mode'.

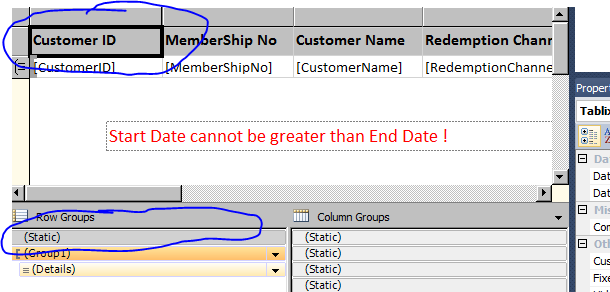

3) In the row group pane, click the static tablix member and same will be highlighted in the table as well.

4) Now in the property window, for the static member in row group pane, set the following properties:
a) Set KeepTogether = True.
b) Set KeepWithGroup property as per your choice.
     For static row above the group, set 'After'
     For static row below the group, set 'Before'
c) Set RepeatOnNewPage = True

5) That's it. Save the changes and run the report and check the output.




Reference: Govind Badkur(http://sqlserver20.blogspot.com)

Can not open the Dropdown Arrow in SSRS

I am using SQL 2008 R2 report services and faced the problem in opening the Drop-down Arrow in SSRS report on IE browser, though I was opening it on the server it self and had admin rights. Then I googled and found a simple solution by adding report server URL to view compatibility list.

To do so, follow the below steps :

1) Go to the server and open the site on IE.

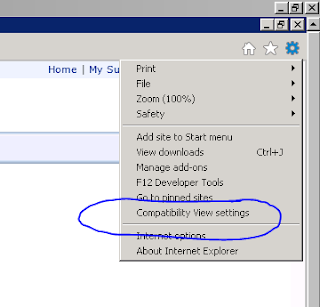

2) Go to the IE settings and click on Compatibility View Settings :

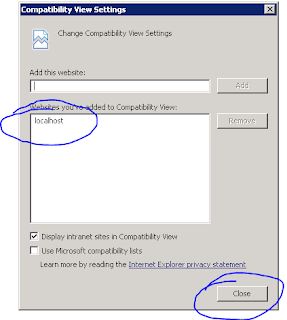

3) Put 'localhost' under Add this website : and clict Add

4) URL gets added and you are done, close the window.

5) And  Dropdown Arrow is opening now :

Reference: Govind Badkur(http://sqlserver20.blogspot.com)
